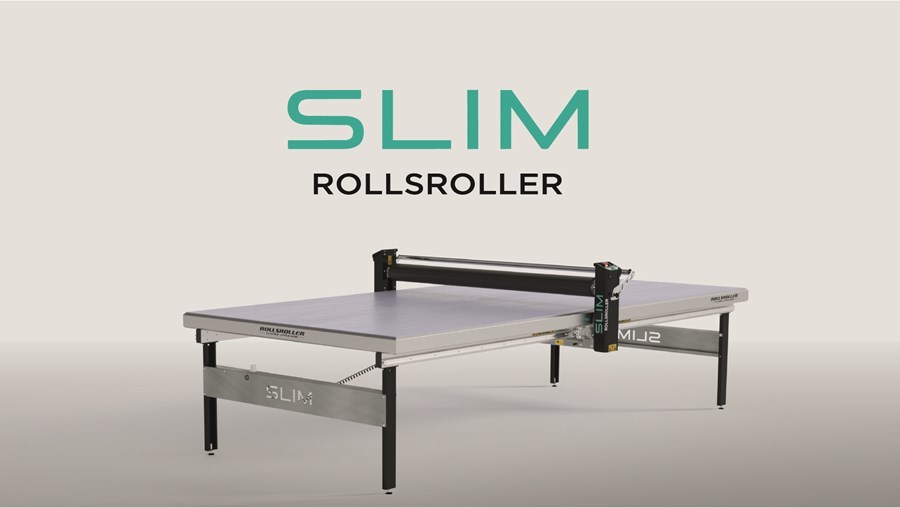

ROLLSROLLER SLIM

Discover the ROLLSROLLER SLIM – Our Entry level Flatbed Applicator

ROLLSROLLER SLIM is engineered to bring professional flatbed application within reach—without compromising on what truly matters.
Built on the same core principles as our premium systems, it delivers a stable platform, controlled application, and a workflow designed for consistent, high-quality results.

With SLIM, we address a clear gap in the market.
Many businesses need reliable, industrial-grade performance—but in a more accessible format, both in terms of investment and footprint.
SLIM is the answer.

Designed and manufactured in Sweden, SLIM combines proven engineering with optimized production efficiency.
The result is a streamlined solution that lowers the barrier to professional application while preserving the core DNA of a ROLLSROLLER.


See download tab for product data sheets

#ROLLSROLLERSLIM




 FEATURE CHART SLIM:
  ROLLSROLLER® Quality work station
  Original Cutting mat
  Multi directional roll holder on glide beam
  Solid welded steel chassis
  Powerful and ergonomic glide beam
  ROLLSROLLER® warranty 3 years*
  Shipped semi assembled
  *Warranty conditions





 OPTIONS SLIM:


  Electrical height adjustable legs Option
  Dimmable LED-Illumination Option
  Side tray short sides* Option
  Stop static kit   Option
  Air blow gun   Option
  KeenCut EVO 3 Smartfold Option
  VinylRemover Option
  Roll holder short side Option
  Oil-free air compressor      Option
  Roll Cradle 1 300mm   Option
  Core holders Option
  Bed end tray Option
  Dual-side control & emergency stop Option
  Mobility kit (castors)  Option




  4 VERSIONS/SIZES:

Model:

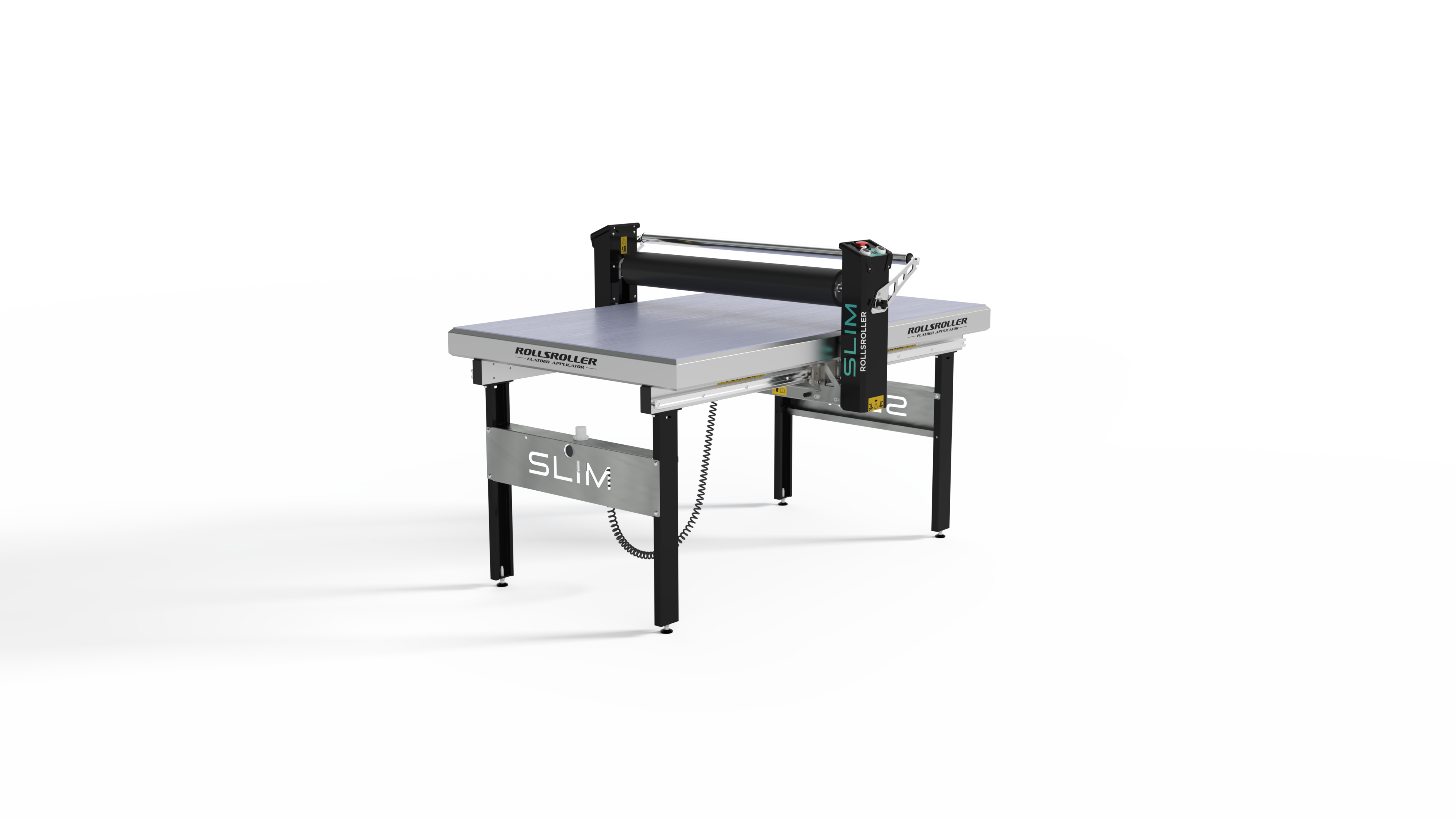

ROLLSROLLER® 160/100 SLIM
ROLLSROLLER® 160/147 SLIM
ROLLSROLLER® 300/170 SLIM

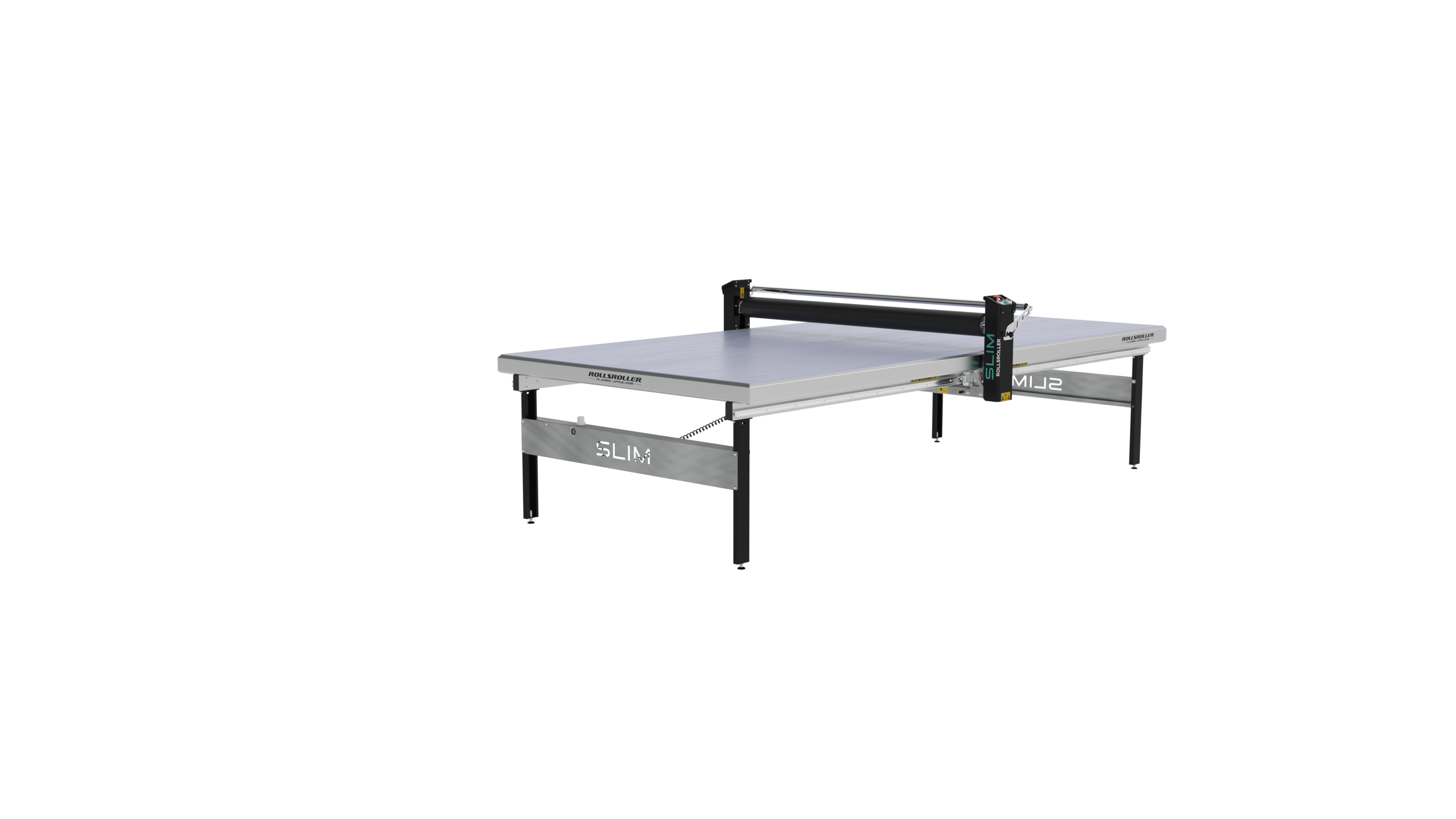

ROLLSROLLER® 360/170 SLIM



   APPLICATION AREAS

  • Mounting to substrate
  • Work table with cutting mat
  • Pre-masking
  • Lamination




160/100, 160/147, 300/170

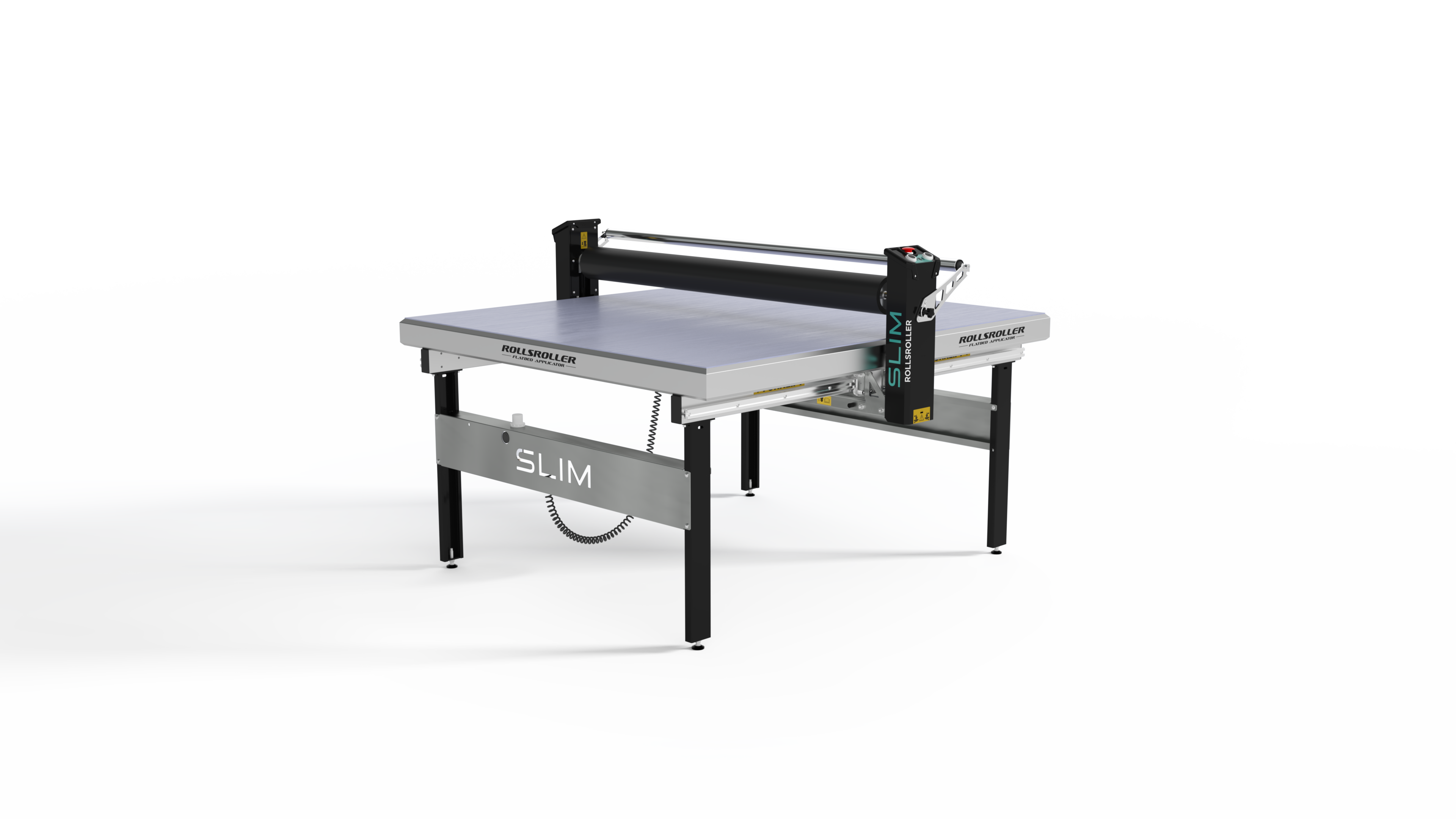

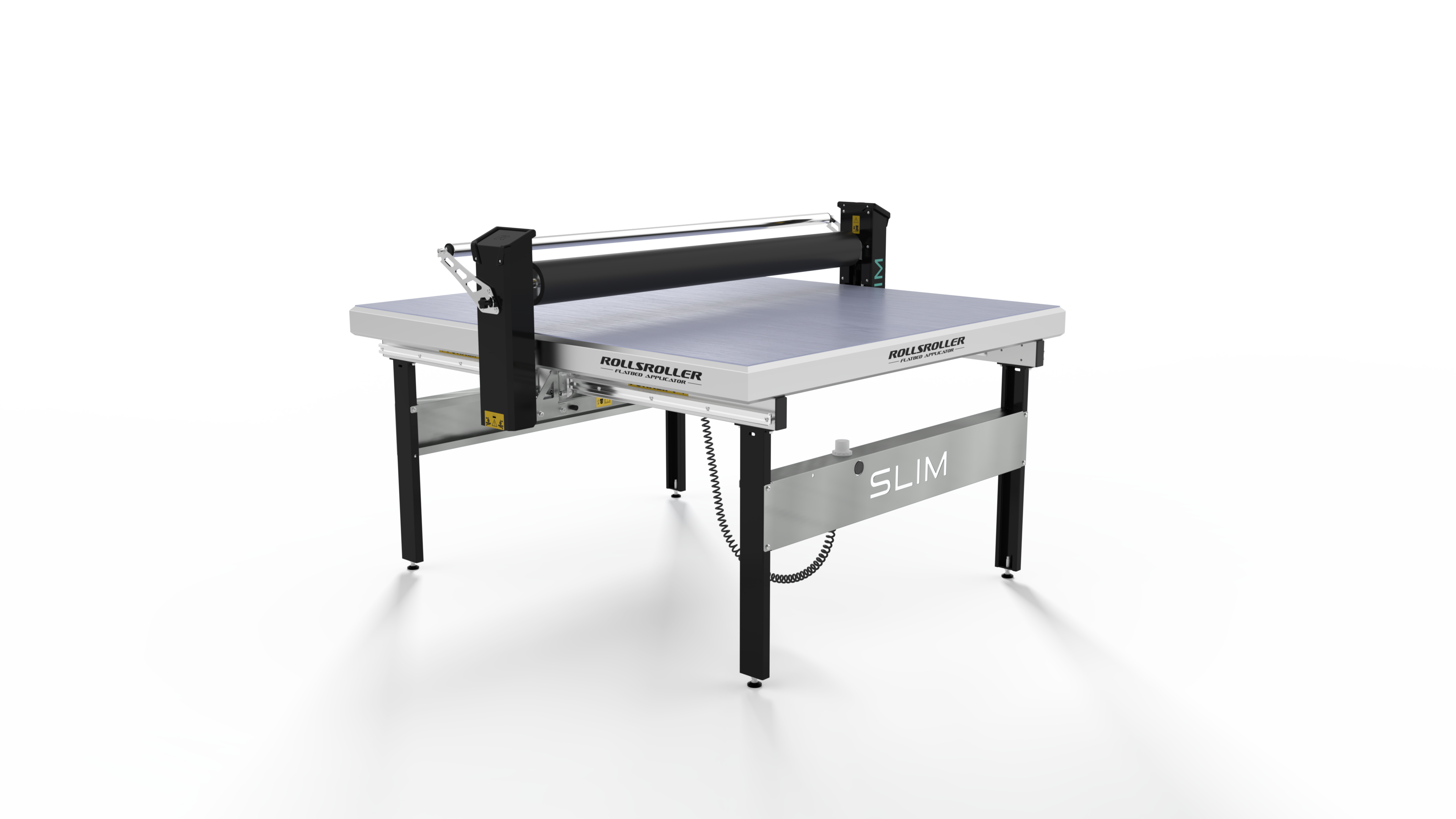

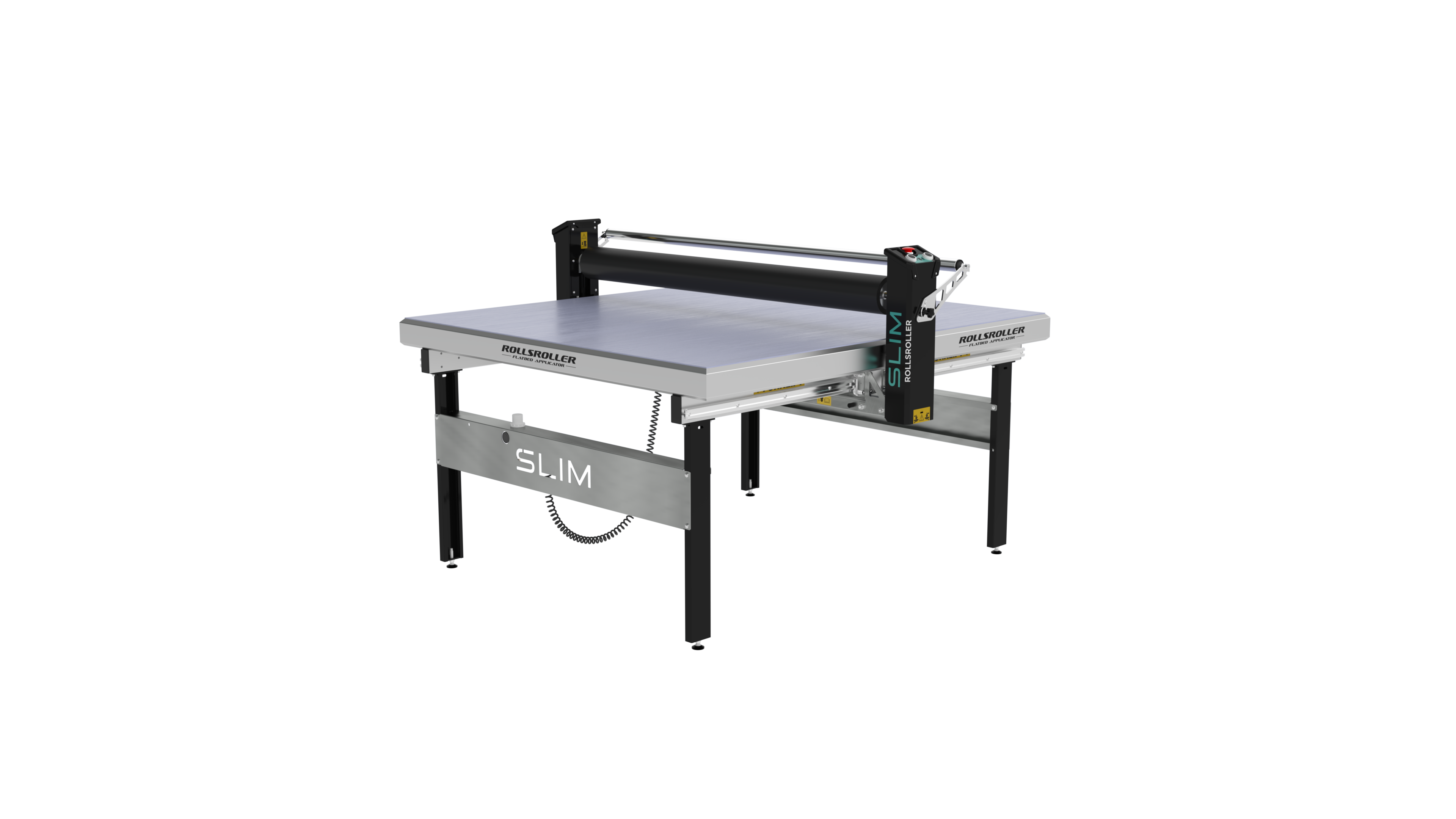

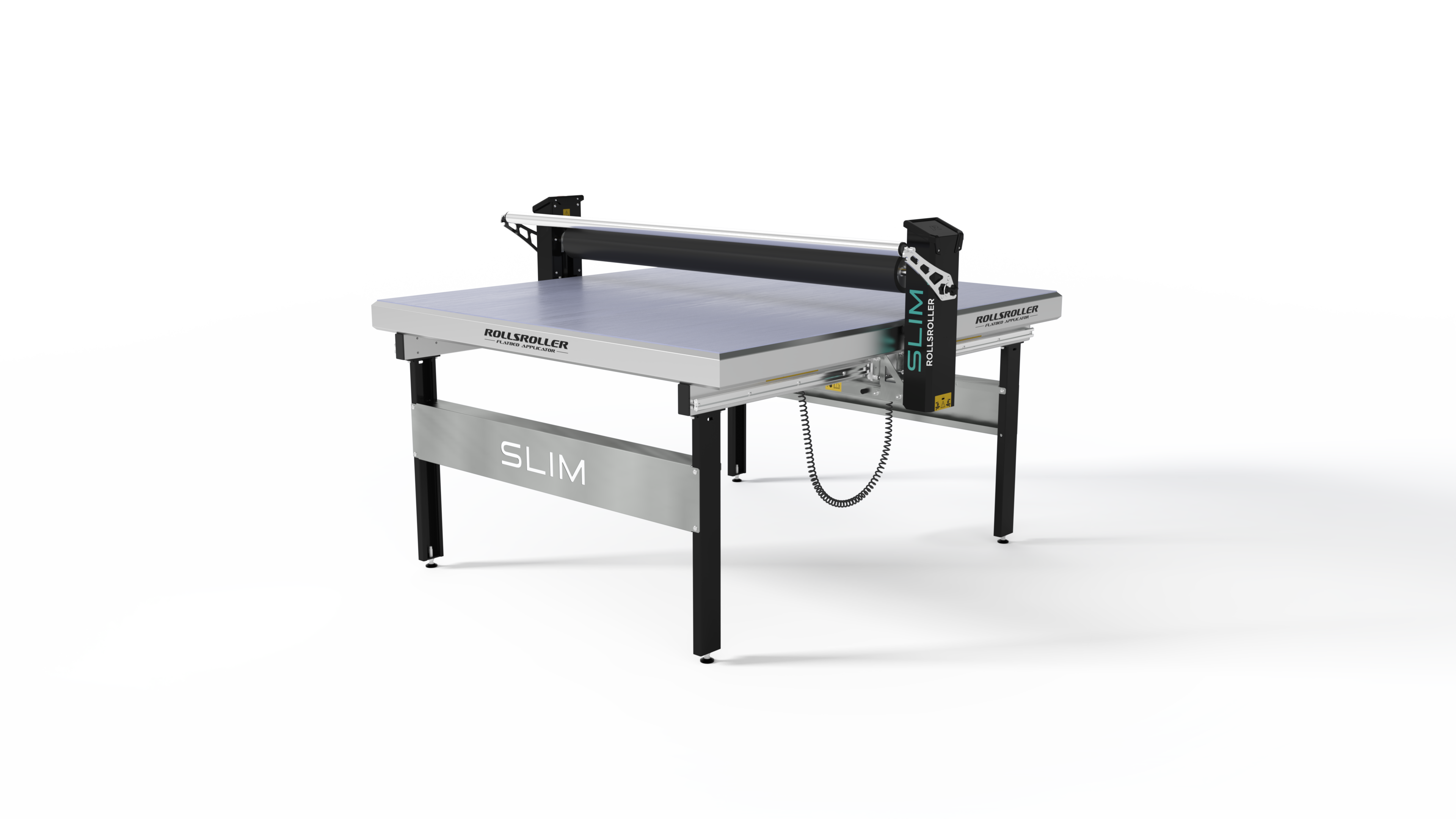

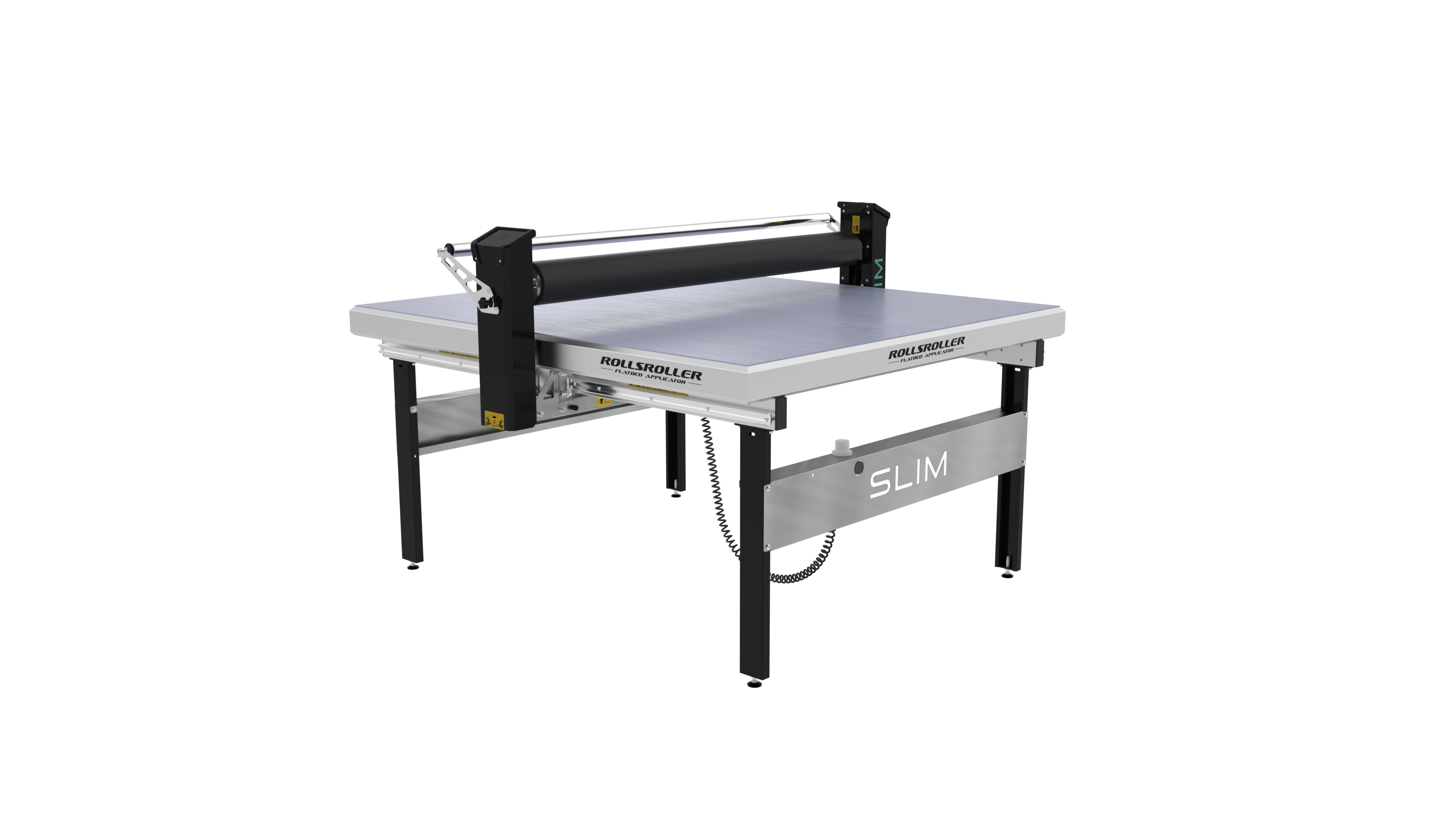

160/147 SLIM

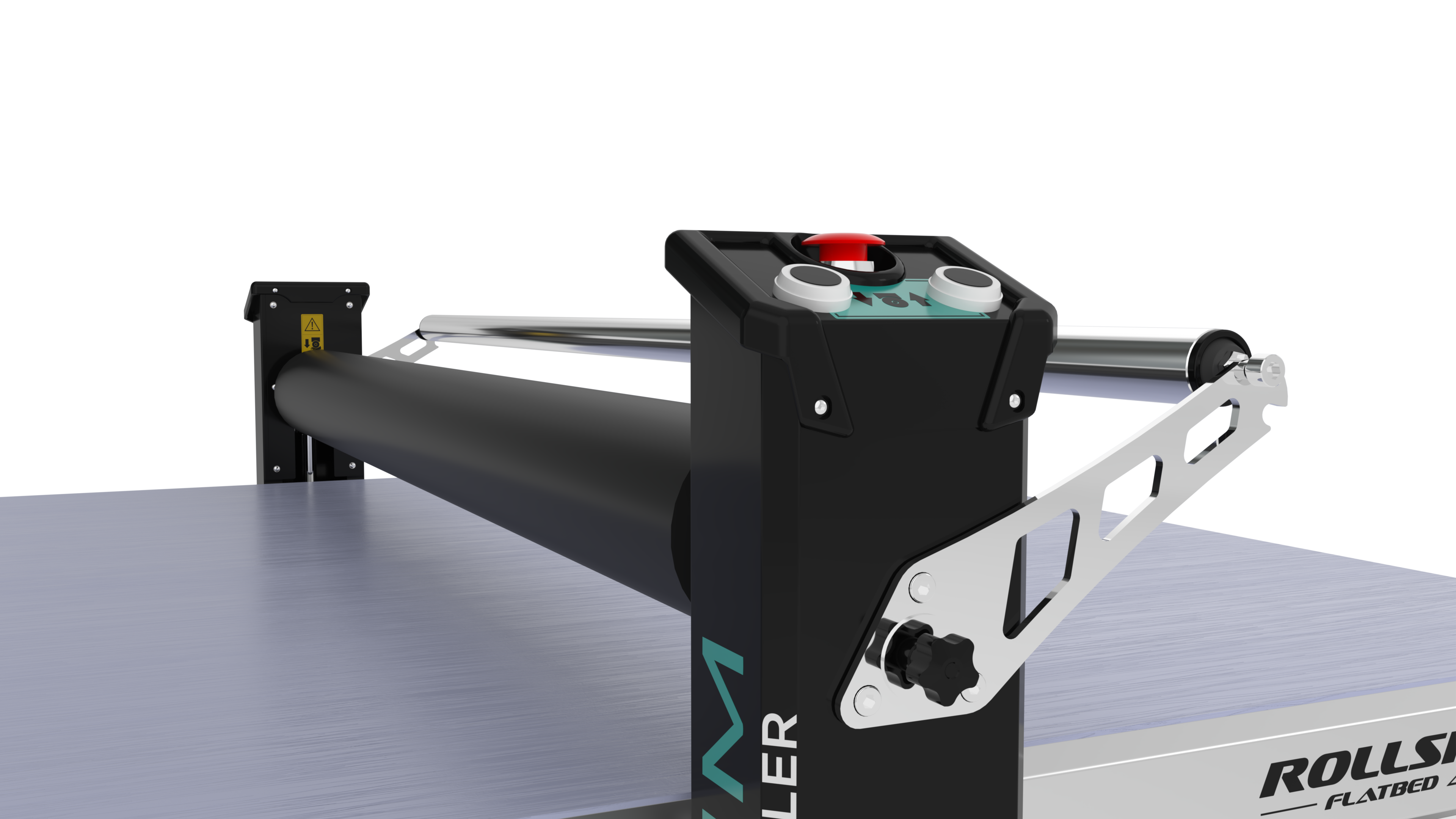

Glide beam with multidirectional media holders



Roll holder short side

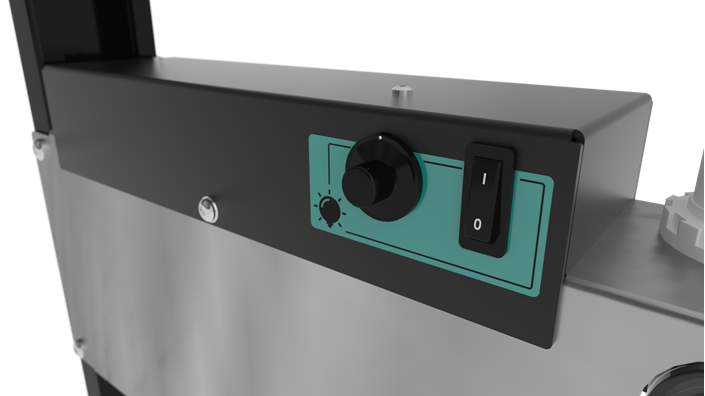

Control panel






MODEL NAME ROLLSROLLER® 160/100 SLIM ROLLSROLLER® 160/147 SLIM ROLLSROLLER® 300/170 SLIM ROLLSROLLER® 360/170 SLIM
Bed length: 1 640 mm / 5ft. 4,6in. 1 640 mm / 5ft. 4,6in. 3 040 mm / 9ft. 11,7in. 3 640 mm / 11ft. 11,3in.
Bed width: 1 000 mm / 3ft. 3,4 in. 1 470 mm / 4ft. 7,1in. 1 700 mm / 5ft. 6,9in. 1 700 mm / 5ft. 6,9in.
Work lenght: 1 240 mm / 4ft. 0,8in. 1 240 mm / 4ft. 0,8in. 2 640 mm / 8ft. 7,9in. 3 240 mm / 10ft. 7,6in.
Work width: (roller width) 930 mm / 3ft 0,6in.  1 400 mm / 4ft. 7,1in.  1 630 mm / 5ft. 4,2in 1 630 mm / 5ft. 4,2in
Work height flatbed:  850 mm / 2ft. 9,5in.  850 mm / 2ft. 9,5in.  850 mm / 2ft. 9,5in.  850 mm / 2ft. 9,5in.
Flatbed surface:  Tempered glass + Cutting mat Tempered glass + Cutting mat Tempered glass + Cutting mat Tempered glass + Cutting mat
Warranty: 3 year limited warranty * 3 year limited warranty * 3 year limited warranty * 3 year limited warranty *

 * Visit rollsroller.com/our-products/warranty/ for more information

Please contact us for more info: info@rollsroller.com



Images

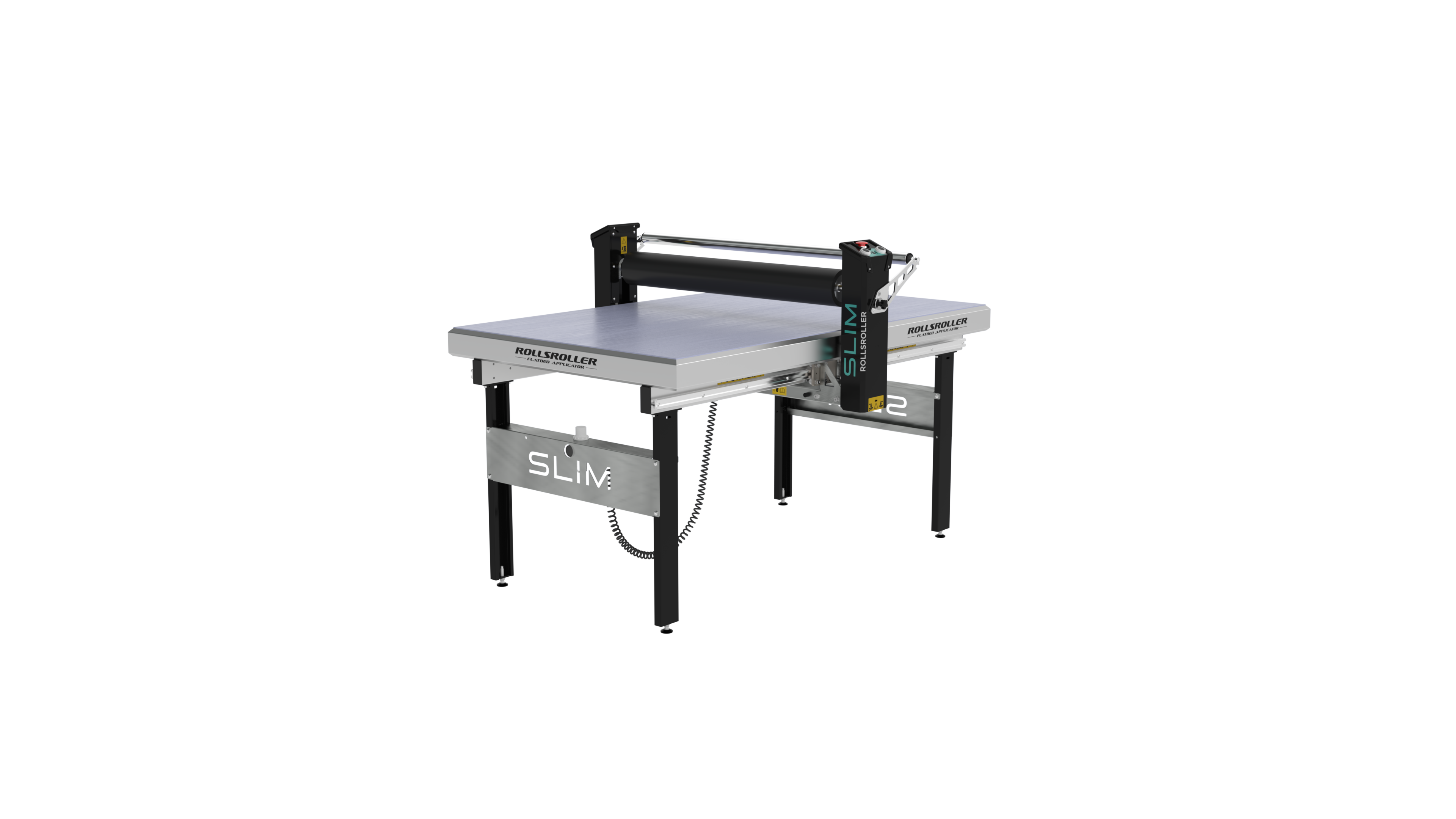

  • RR 160 100 Slim [2026-03-11]1.png

    RR 160 100 Slim [2026-03-11]1.png

  • RR 160 100 Slim [2026-03-11]1-1.png

    RR 160 100 Slim [2026-03-11]1-1.png

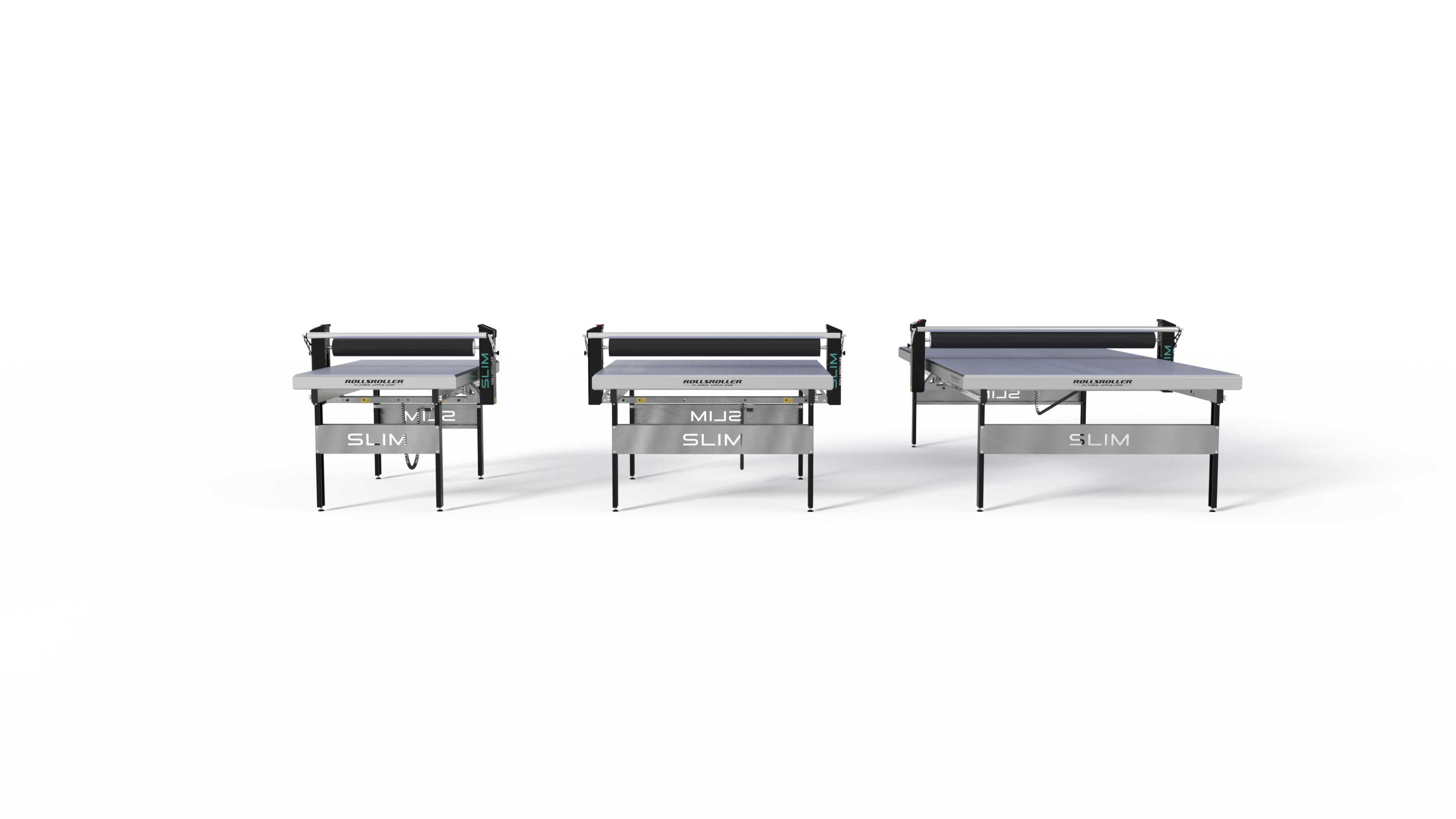

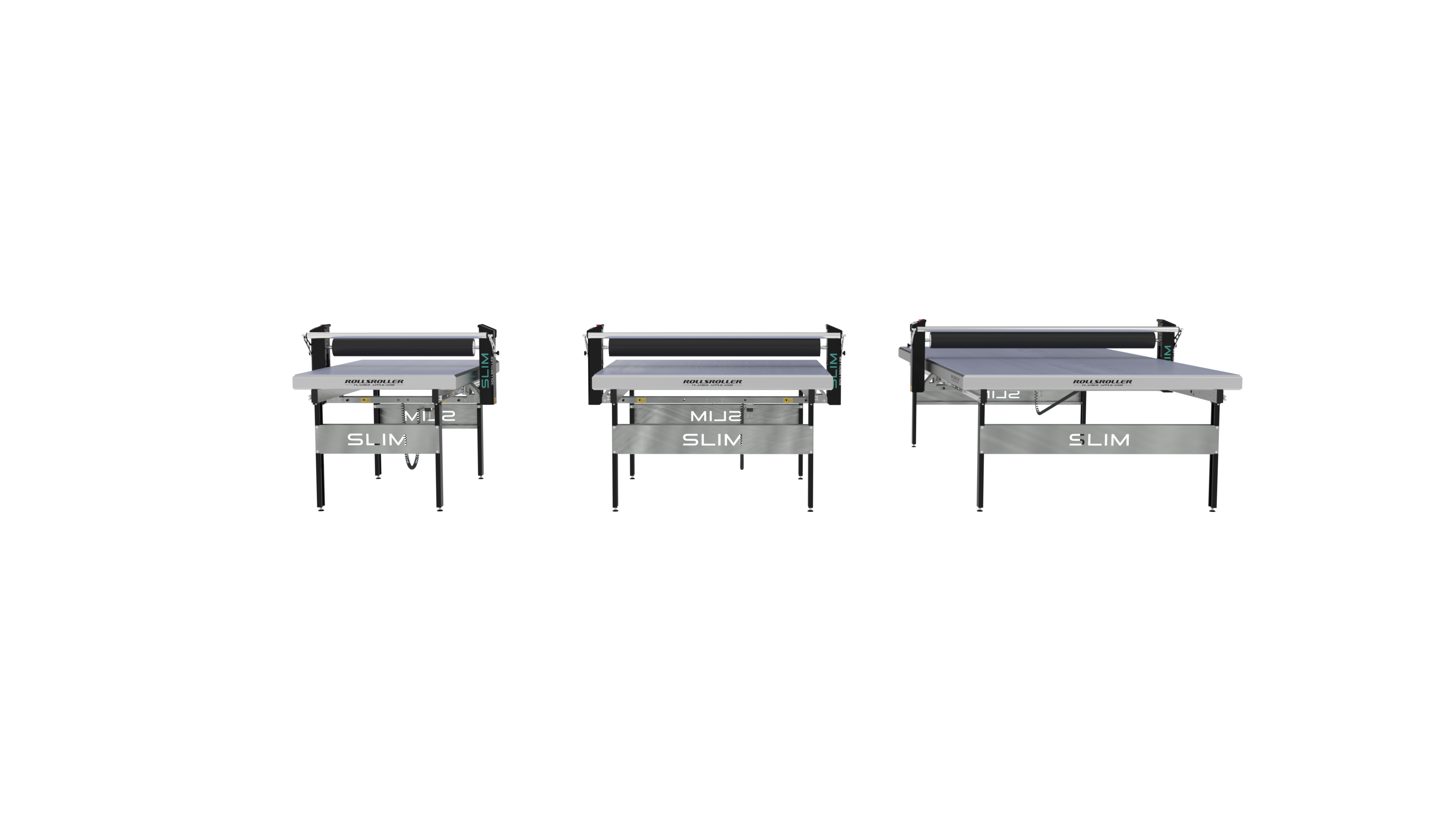

  • RR 160 100, 160 147, 360 170 Slim [2026-03-12]1.png

    RR 160 100, 160 147, 360 170 Slim [2026-03-12]1.png

  • RR 160 100, 160 147, 360 170 Slim [2026-03-12]1-1.png

    RR 160 100, 160 147, 360 170 Slim [2026-03-12]1-1.png

  • RR 160 147 Slim [2026-03-11]1.png

    RR 160 147 Slim [2026-03-11]1.png

  • RR 160 147 Slim [2026-03-11]1-1.png

    RR 160 147 Slim [2026-03-11]1-1.png

  • RR 160 147 Slim [2026-03-11]2.png

    RR 160 147 Slim [2026-03-11]2.png

  • RR 160 147 Slim [2026-03-11]2-1.png

    RR 160 147 Slim [2026-03-11]2-1.png

  • RR 160 147 Slim [2026-03-11]3.png

    RR 160 147 Slim [2026-03-11]3.png

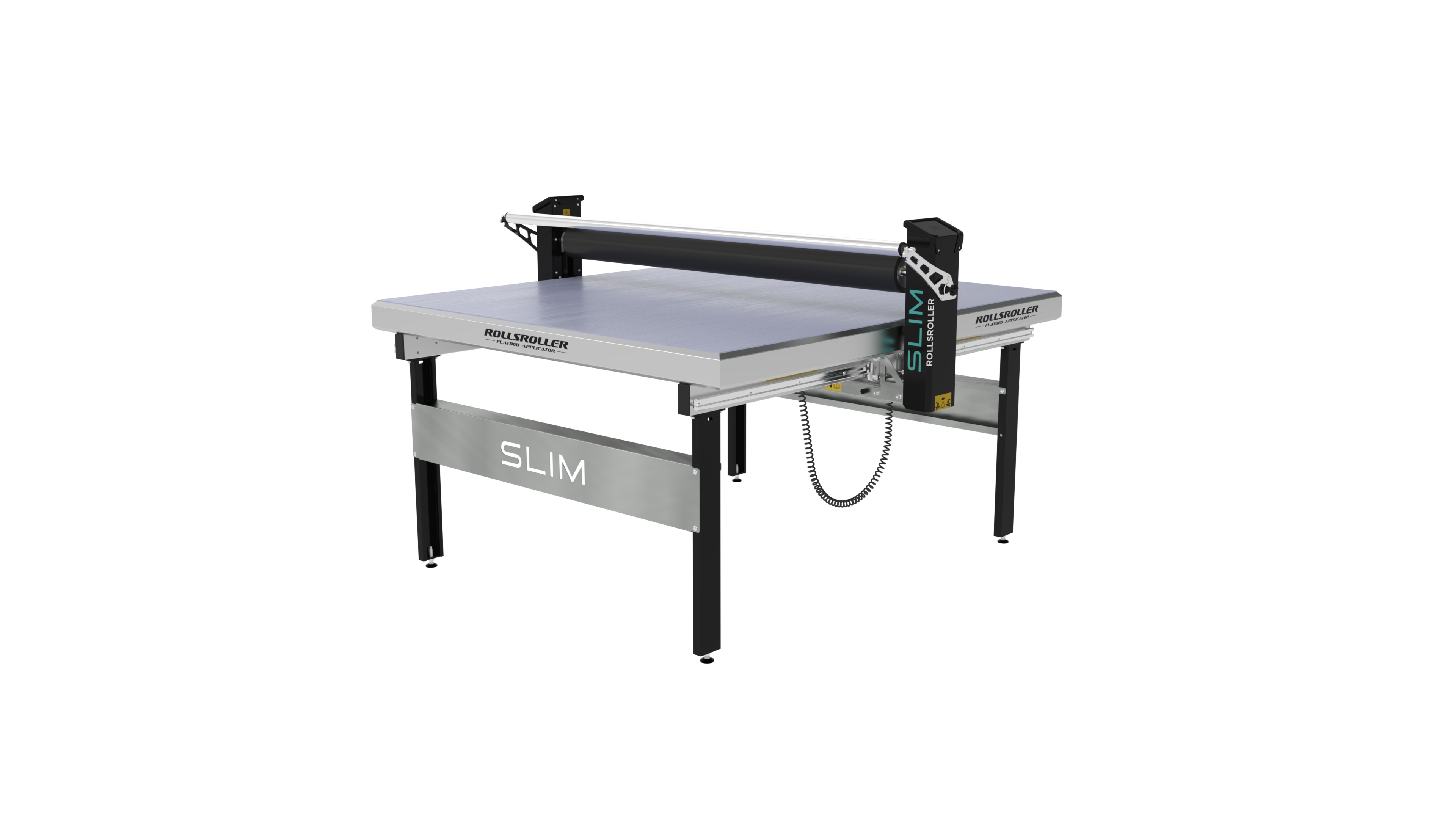

  • RR 160 147 Slim [2026-03-11]4.png

    RR 160 147 Slim [2026-03-11]4.png

  • RR 160 147 Slim [2026-03-11]4-1.png

    RR 160 147 Slim [2026-03-11]4-1.png

  • RR 160 147 Slim [2026-03-11]5.png

    RR 160 147 Slim [2026-03-11]5.png

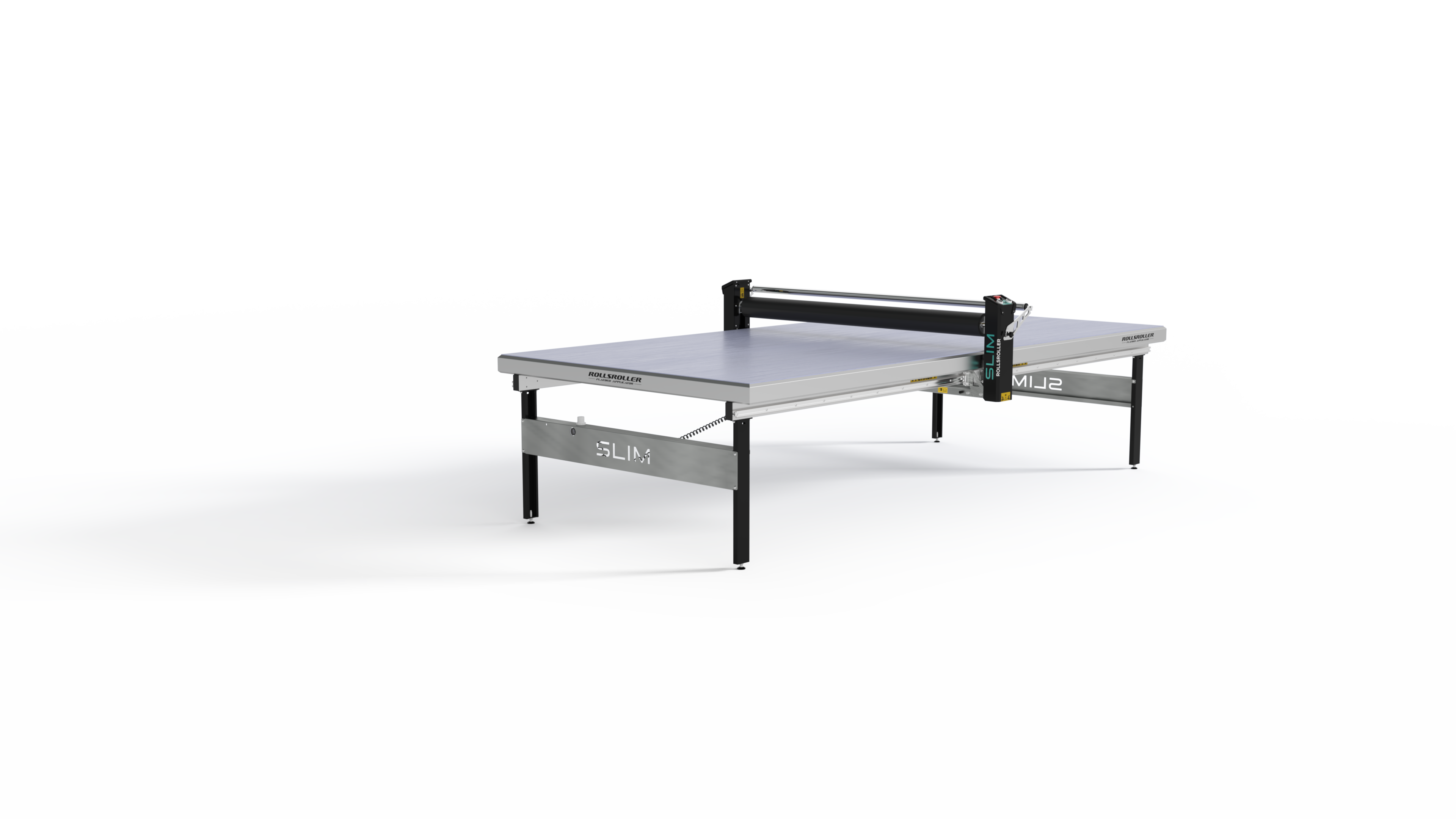

  • RR 360 170 Slim [2026-03-12]1.png
